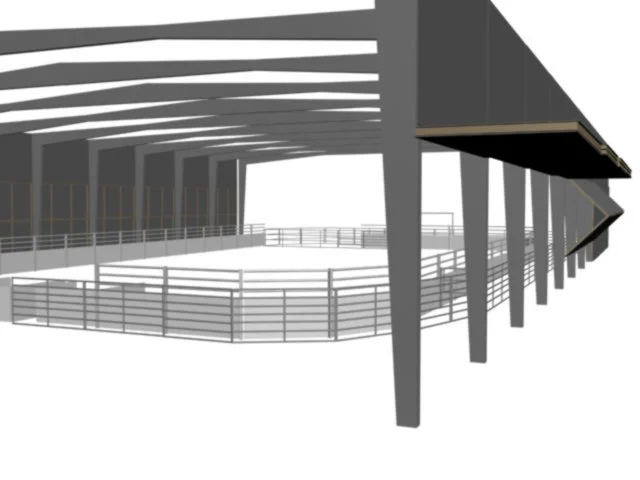

Arena Complex Concept with Folding Side Doors

Modular, Scalable Arena Layouts

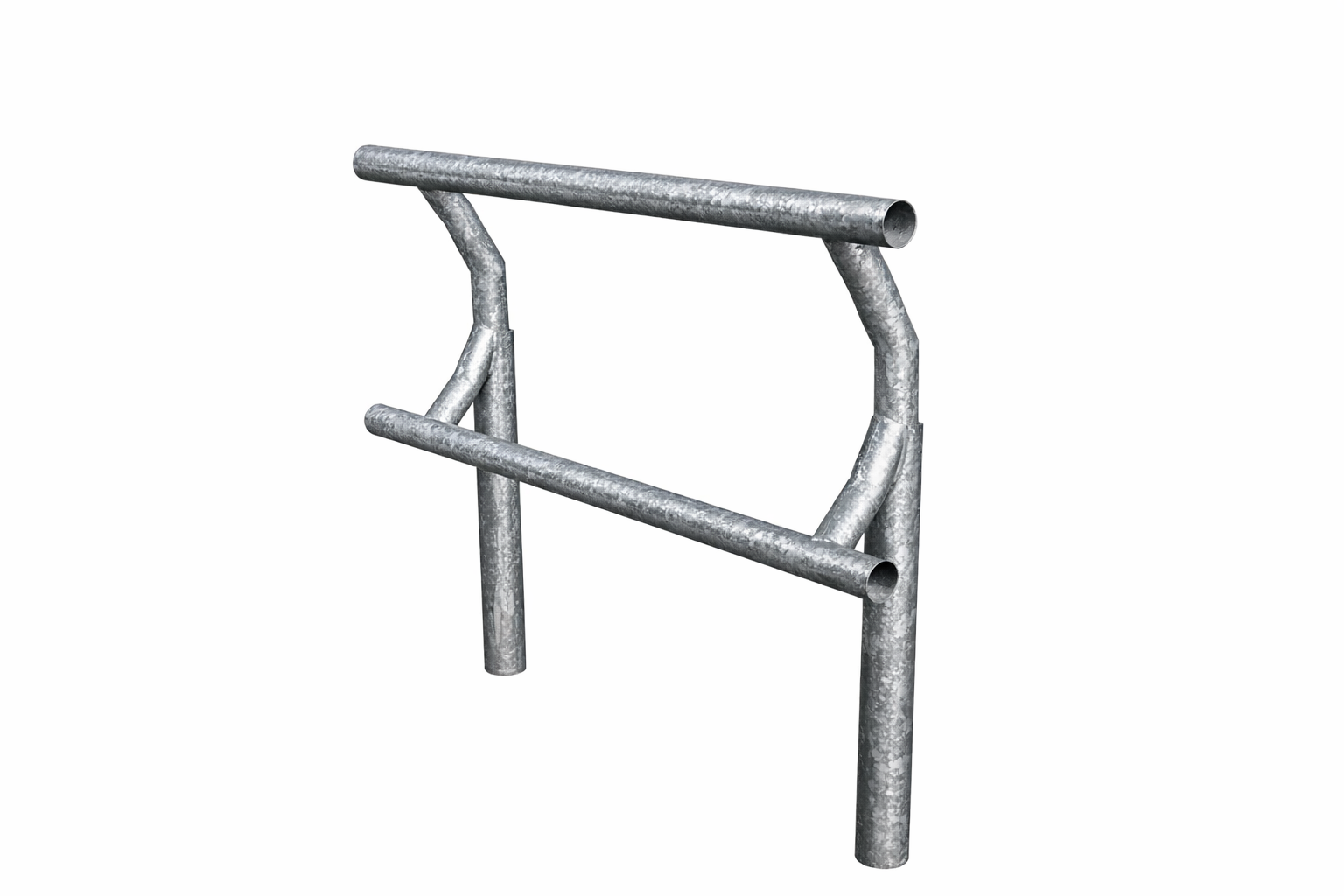

The arena rail and infrastructure system is designed to support:

• Various arena sizes and shapes

• Open or covered arena configurations

• Incremental upgrades over time

Because the components are modular, facilities can:

• Start with a basic arena rail system

• Add lighting and watering infrastructure as needs evolve

• Maintain consistency across multiple arenas on the same property

Designed for Real-World Use

This arena concept reflects the same design philosophy used throughout the Endurance Barns platform:

• Practical solutions to real maintenance challenges

• Durable, proven materials

• Infrastructure that works with daily operations, not against them

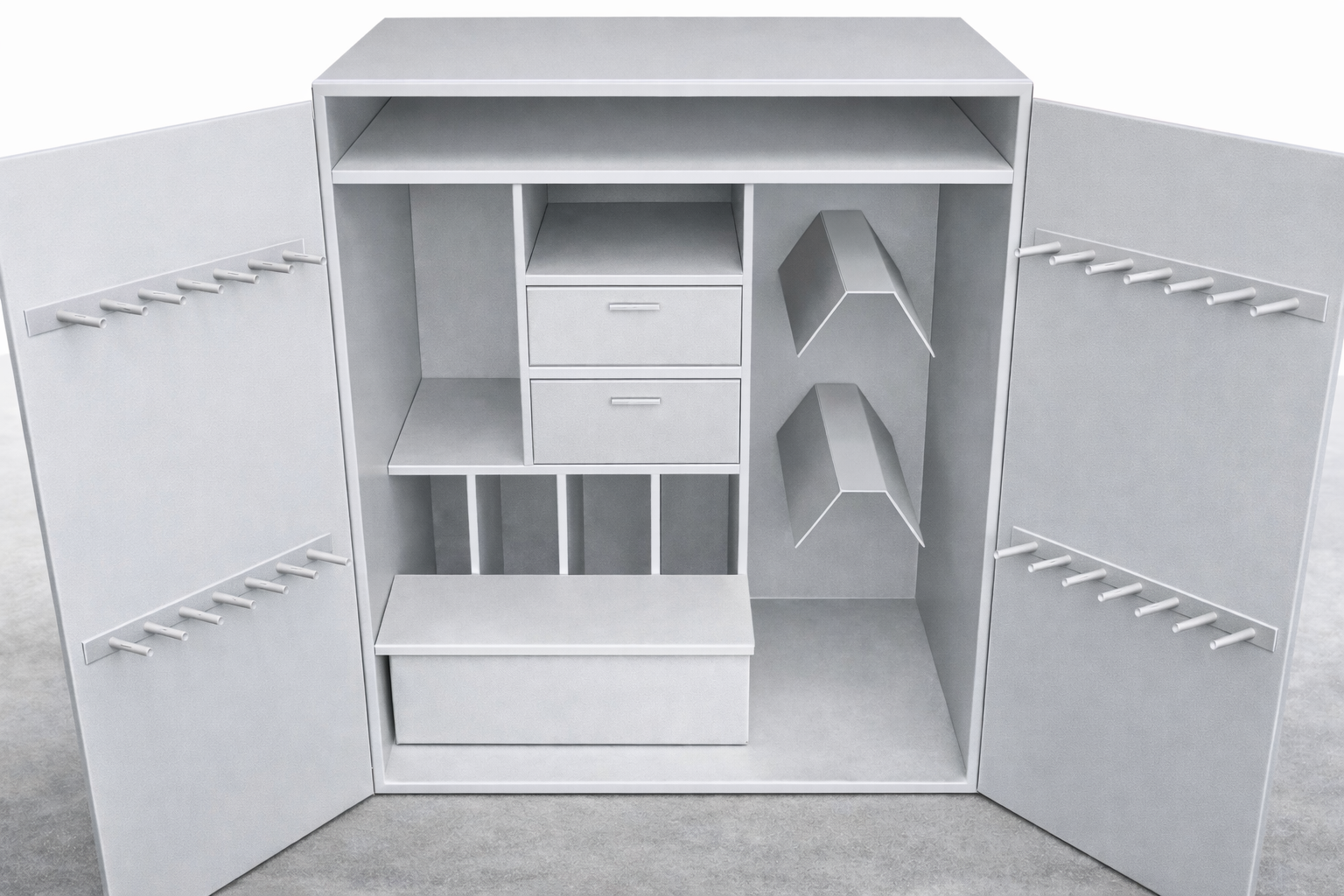

Tack Lockers

Secure • Modular • Designed for Demanding Environments

The tack locker shown is a conceptual depiction of a modular storage system designed to integrate seamlessly with the Endurance Barns stall platform. Built around durability, organization, and flexibility, these lockers are intended to support daily barn operations in both permanent and mobile configurations.

Key Features

• Aluminum construction for strength, corrosion resistance, and long service life

• Configurable interior layouts to accommodate a wide range of tack and equipment

• Adjustable saddle racks for flexible positioning and different saddle types

• Integrated shelving, drawers, and door-mounted hangers for organized storage

• Grain bins for feed or supplement storage

• Compatible with fixed installations or mobile configurations

• Designed to withstand demanding barn environments

Available in multiple sizes and configurations to match facility layout, operational needs, and future expansion.

Proprietary modular design. Patent pending.

Arena Concept with Lighting and Sprinkler System

Integrated Arena Standards

Lighting & Watering from a Single Structural System

The image on the right shows the arena configured with dual-purpose standards positioned around the perimeter.

Standard Features

• Vertical standards based on commercial sign and street-light infrastructure

• Proven designs commonly used by cities and highway departments

• Engineered for durability, wind loading, and long service life

Multi-Function Arms

• Outreaching arms provide arena lighting coverage

• The same arm assemblies also function as sprinkler delivery points

• Water is distributed evenly across the riding surface without interfering with riders or equipment

This integrated approach:

• Reduces the number of standalone poles

• Keeps the arena perimeter clear and organized

• Simplifies installation and future expansion

Stall Divider Options

Interchangeable • Functional • Facility-Specific

Accessory divider options allow facilities to tailor visibility, airflow, and separation above the concrete panel system.

Available divider styles include:

• Cage-style bar dividers

• Screen panel dividers

• Pipe panel dividers

All divider options are designed to mount above the concrete panel system and can be changed or upgraded as operational needs evolve.

Designed as a System

Accessories are not standalone products—they are part of a unified modular platform. This allows facilities to:

• Start with core stall systems

• Add accessories over time

• Reconfigure layouts without replacing infrastructure

Conceptual applications shown. Development timelines and availability may vary. Proprietary modular system. Patent pending.
