Modular Box Stall System

Durable • Configurable • Scalable

This box stall system is a modular, heavy-duty equine housing solution designed for longevity, safety, and flexibility. Constructed with galvanized steel framing and solid concrete panel walls, it provides a secure and calm environment suitable for a wide range of horses and management applications. The system is intentionally engineered to support multiple standard and custom sizes using the same core components.

Standard Box Stall Sizes

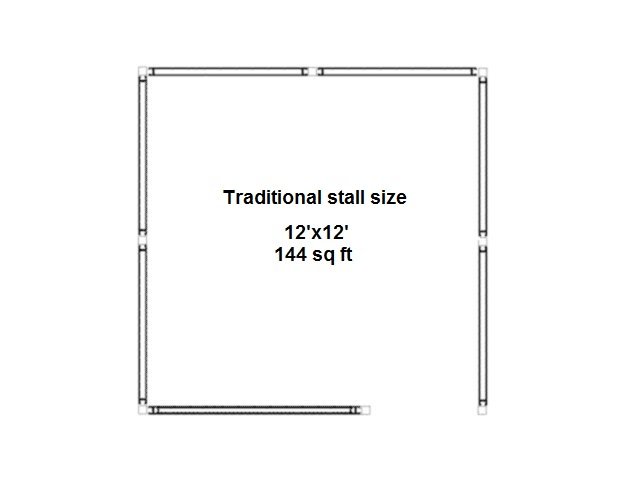

12′ × 12′ Box Stall

  • Industry standard for general boarding and training barns

  • Efficient footprint with full functionality

  • Ideal for space-constrained facilities or higher stall counts

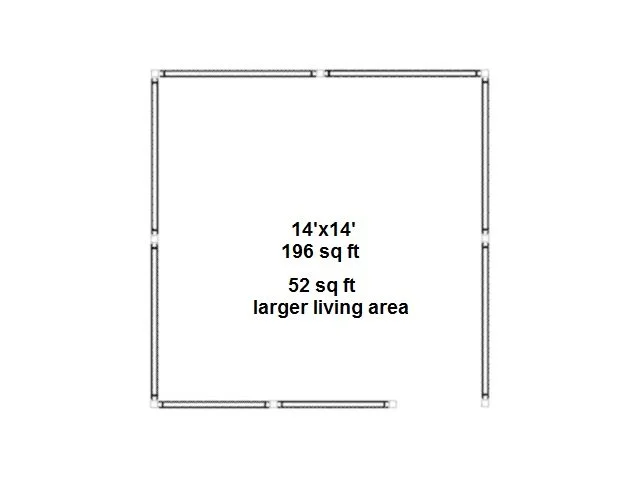

14′ × 14′ Box Stall

  • Increased comfort and movement for larger horses

  • Common choice for performance and sport horses

  • Balanced option between space and facility density

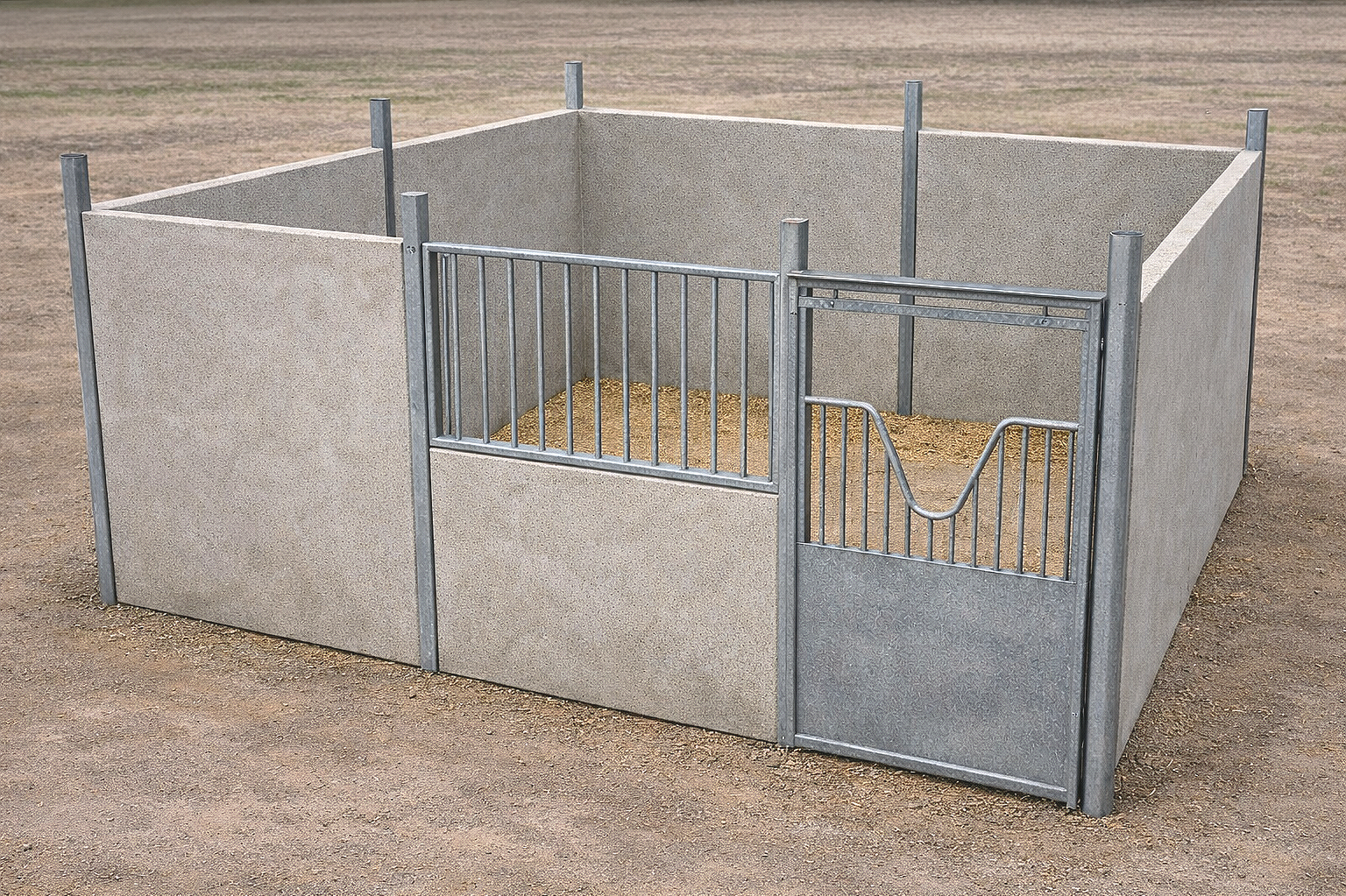

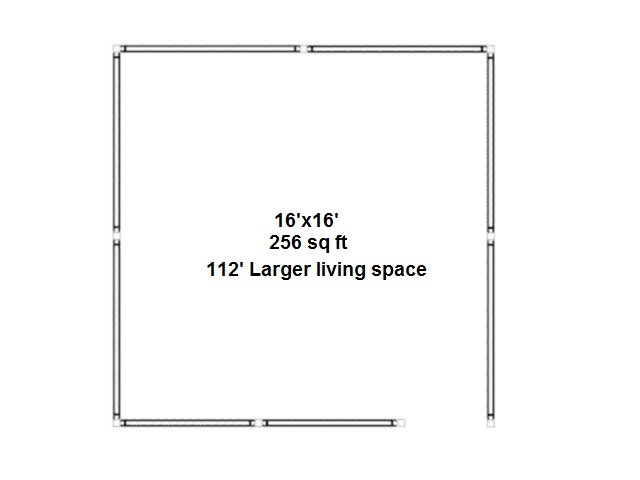

16′ × 16′ Box Stall (Shown)

  • Premium box stall configuration

  • Suitable for broodmares, rehabilitation, foaling, or high-value horses

  • Provides maximum freedom of movement and enhanced welfare

Modular & Customizable by Design

Beyond these standard sizes, the system supports a wide range of custom dimensions by extending or reconfiguring wall panels and posts. This allows facilities to:

  • Match existing barn layouts

  • Create oversized stalls or specialty enclosures

  • Adjust stall depth or width as operational needs evolve

  • Standardize components while varying final stall size

Because the structure is modular, future reconfiguration or expansion can be accomplished without replacing the entire system.

Key Features

  • Galvanized steel posts and gate for corrosion resistance

  • Solid lower wall panels for safety and durability

  • Vertical-bar gate with V-cut opening for horse comfort and handler visibility

  • Ground-mounted or surface-mounted installation options

  • Compatible with permanent barns, temporary structures, or open-air layouts

Designed for Long-Term Use

This box stall system is suitable for:

  • Private barns

  • Boarding and training facilities

  • Breeding operations

  • Temporary or permanent installations

  • Future modular expansion

Conceptual applications shown. Development timelines and availability may vary. Proprietary modular system. Patent pending.
